Webbing slings are among the most widely used lifting tools in construction, logistics, manufacturing, and heavy industry. They are flexible, lightweight, and capable of handling substantial loads when selected and used correctly. But like any lifting equipment, their performance depends heavily on understanding the engineering principles behind them, applying the right inspection routines, and following the standards that govern their design and use.

This guide covers the complete technical picture: how webbing slings are built, what materials are used, how working load limits are calculated, how sling angle affects capacity, what the major safety standards require, and how to conduct effective inspections in the field. Whether you are a lifting equipment engineer, a site safety officer, or a project manager responsible for lifting operations, this guide will give you a solid foundation for making better decisions.

What Is a Webbing Sling?

A synthetic webbing sling is a flexible lifting device made from woven synthetic fibers. It is designed to wrap around, support, or connect a load to a crane hook, hoist, or other lifting point. Unlike wire rope or chain slings, webbing slings are soft and pliable, which makes them ideal for loads with finished surfaces, irregular shapes, or materials that could be damaged by harder sling types.

They are typically flat in cross-section, though some designs use a round or tubular construction. Flat webbing slings are the most common and are manufactured in widths ranging from 25 mm to 300 mm or more, depending on the required load capacity.

Common Applications

Webbing slings are used across a wide range of industries and applications, including:

Lifting steel beams, precast concrete panels, and structural elements on construction sites
Moving machinery, engines, and industrial equipment in manufacturing facilities
Handling pipes, cable drums, and rolls of material in logistics and warehousing
Rigging delicate or polished surfaces where scratching or denting must be avoided
Marine and offshore lifting, where corrosion resistance is important

Sling Structure and Material Engineering

The performance of any webbing sling begins with the materials and construction method used to make it. Understanding these factors helps explain why certain slings are rated for higher loads, why some materials are preferred in specific environments, and why the design factor matters so much.

Woven Fiber Construction

A webbing sling is constructed from continuous synthetic yarns that are woven together under tension to form a flat or tubular belt. The weave pattern and yarn density determine the sling’s tensile strength, elongation characteristics, and resistance to cutting or abrasion.

Load-bearing yarns run lengthwise through the sling body and carry the primary tension when a load is applied. The weave also includes transverse fibers that hold the structure together and provide lateral stability. The end fittings, usually reinforced loops or eyes, are formed by folding and stitching the webbing back on itself. These stitched sections are carefully engineered and are critical points in the sling’s overall strength rating.

Polyester: The Dominant Material in Lifting Slings

A polyester lifting sling is by far the most common type found in industrial use, and for good reason. Polyester combines high tensile strength with very low elongation under load, typically between 2% and 3% at the working load limit. This low-stretch behavior gives operators predictable, controlled lift characteristics.

Polyester also has strong resistance to a wide range of industrial chemicals, including most acids and many alkalis at moderate concentrations. It absorbs very little water, which means it retains close to its full strength when used in wet environments. It is also UV-resistant to a reasonable degree, though prolonged direct sun exposure will degrade any synthetic fiber over time.

Other synthetic materials used in webbing slings include:

Nylon (polyamide): Higher elongation than polyester (up to 10% at WLL), which provides some shock-absorption benefit, but is not suitable for use around acids
Polypropylene: Lower cost, lightweight, and resistant to water and many chemicals, but has lower strength and is more susceptible to UV degradation
High-tenacity polyester: A higher-grade variant used in heavy-lift applications requiring compact slings with greater load capacity per unit width

Color Coding for Capacity Identification

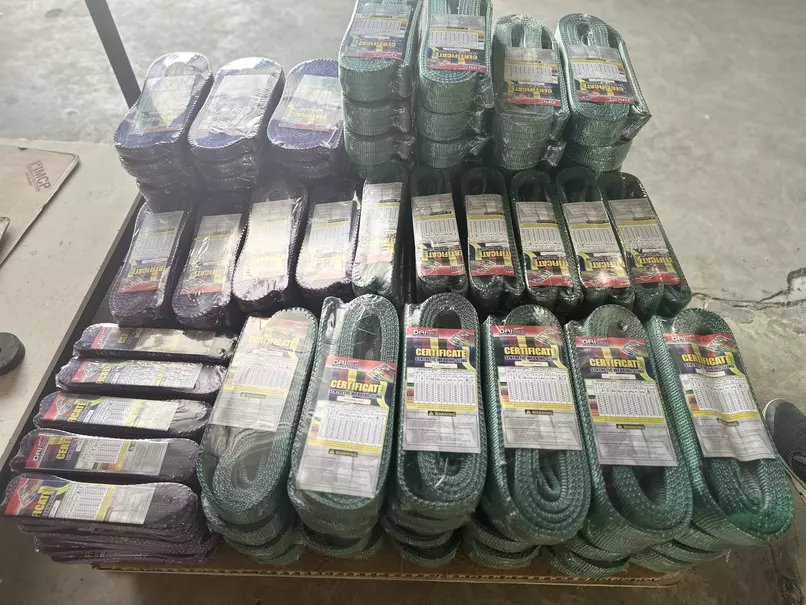

Under EN 1492-1, webbing slings follow a standardized color-coding system that allows workers to identify load capacity at a glance. Violet indicates 1 tonne, green is 2 tonnes, yellow is 3 tonnes, grey is 4 tonnes, red is 5 tonnes, brown is 6 tonnes, blue is 8 tonnes, and orange is 10 tonnes. This system is a simple but effective safety feature that reduces the risk of using an undersized sling.

Understanding Working Load Limit

The working load limit, commonly abbreviated as WLL, is the most critical specification on any lifting sling. It defines the maximum load a sling is rated to carry under specific conditions during normal use. Every lifting operation must be planned so that the actual load on the sling does not exceed this value.

The WLL is derived from the sling’s minimum breaking strength divided by a design factor. According to ASME B30.9 sling standards, synthetic webbing slings must maintain a minimum design factor of 5:1 between breaking strength and working load limit. This means that a sling rated at 2 tonnes WLL must have a minimum breaking strength of at least 10 tonnes. The same 5:1 design factor requirement appears in EN 1492-1 for European markets.

This safety margin is not a suggestion. It is a recognition that real-world lifting involves dynamic forces, shock loading, wear, aging, and conditions that are rarely perfectly controlled. The design factor provides a buffer against these variables.

Factors That Affect the Effective WLL in Practice

The rated WLL on a sling label assumes a vertical straight pull in a basket or vertical hitch under controlled conditions. Several real-world variables reduce the effective capacity available for a given lift:

Hitch configuration: The method used to attach the sling significantly changes the load distribution across the sling body
Sling angle: As the angle between the sling leg and the vertical decreases, the tension in each sling leg increases
Wear and damage: Physical degradation reduces breaking strength and therefore reduces the effective safety margin
Temperature: Elevated temperatures weaken synthetic fibers; exposure to heat sources must be considered
Chemical exposure: Some environments degrade specific sling materials even if they appear undamaged visually

Hitch Types and Their Capacity Factors

There are three fundamental hitch configurations used in webbing sling rigging:

Vertical hitch: The sling hangs straight from the hook to the load. The capacity factor is 1.0, meaning the full rated WLL applies
Choker hitch: The sling is looped around the load and passed through its own eye, tightening as the load rises. Capacity is reduced to approximately 0.75 to 0.80 of the vertical WLL due to the tight angle at the choke point
Basket hitch: The sling passes under the load with both eyes on the hook. With a vertical lift, this can effectively double the capacity, though in practice, this depends on maintaining a leg angle greater than 60 degrees from horizontal

Always apply the appropriate capacity factor before committing to a sling for a specific lift. The Web Sling and Tie Down Association (WSTDA) provides detailed guidance on capacity factors for different hitch configurations, and its published standards are a practical reference tool for riggers and safety officers.

Sling Angle Physics: Why the Angle of Lift Matters

One of the most important and frequently misunderstood aspects of lifting sling safety is the effect of sling angle on tension. Many experienced riggers understand it intuitively, but it is worth explaining the physics clearly because the consequences of getting it wrong are serious.

When a two-legged sling is used to lift a load, the weight of the load is distributed between the two sling legs. If both legs are perfectly vertical, each leg carries exactly half the total load. But as the legs spread outward and the angle from vertical increases, the tension in each leg must increase to maintain the same vertical lifting force.

The relationship is governed by basic trigonometry. The tension in each sling leg equals half the total load divided by the cosine of the horizontal angle from vertical. At an included angle of 60 degrees (each leg at 30 degrees from vertical), the load factor is approximately 1.0, and efficiency is reasonable. At a 90-degree included angle (each leg at 45 degrees from vertical), each leg carries 70.7% of the total load. At 120 degrees included angle (each leg at 60 degrees from vertical), each leg carries 100% of the total load, meaning the sling is working at its full vertical WLL even though it appears to be sharing the load.

Beyond 120 degrees of included angle, each leg is carrying more than the equivalent of the full load applied in a straight vertical pull. This situation represents a serious overload risk and must be avoided.

Practical Guidance on Sling Angles

Most rigging standards, including ASME B30.9 and EN 1492-1, recommend keeping sling leg angles below 60 degrees from vertical where possible. The following general guidelines apply:

Sling angle 0 to 45 degrees from vertical: Load factor is manageable, and the sling operates within a comfortable safety range
Sling angle 45 to 60 degrees from vertical: Load factor increases noticeably; the rigger should verify the calculated tension against the WLL before proceeding
Sling angle beyond 60 degrees from vertical: Load factor exceeds 2.0; this configuration is generally unacceptable and requires either a longer sling or a spreader beam to reduce the angle

In practice, using a spreader beam or lifting beam to create a more vertical sling leg is the correct engineering response when geometry forces a wide angle. This is both a safety measure and a way to reduce lateral compressive forces on the load itself.

Regulatory and Safety Standards for Webbing Slings

Multiple regulatory bodies and standards organizations have established requirements for the design, testing, use, and inspection of webbing slings. Compliance with these standards is not optional in most jurisdictions, and they form the legal and technical baseline for any competent lifting operation.

ASME B30.9 Sling Standard

The ASME B30.9 standard, published by the American Society of Mechanical Engineers, is the primary reference for sling design, materials, testing, and safe use in North America. It covers all sling types, including wire rope, chain, metal mesh, and synthetic materials, including webbing slings.

ASME B30.9 specifies minimum design factors, labeling requirements, hitch capacity factors, temperature limitations, and inspection intervals. It also addresses the effects of environmental exposure on sling materials. For synthetic webbing slings specifically, it establishes that the rated capacity must be de-rated when temperatures exceed the limits for the specific fiber type, and that slings must be removed from service when certain visible damage conditions are present.

Compliance with ASME B30.9 is required for many contractors working on federally regulated projects in the United States, and it is widely referenced in workplace safety programs internationally.

OSHA 29 CFR 1910.184

The Occupational Safety and Health Administration (OSHA) regulates sling use in general industry under 29 CFR 1910.184. This regulation covers requirements for sling identification, proof testing documentation, storage conditions, inspection before each lift, and removal from service criteria. OSHA regulations are legally binding in the United States, and violations can result in significant fines and project shutdowns.

Under OSHA 29 CFR 1910.184, all slings must be inspected prior to each use, and a thorough inspection by a qualified person must be performed periodically. The regulation also specifies that slings must not be used beyond their rated capacity and must be protected from sharp edges and corners that could cut the webbing.

EN 1492-1 for European Markets

In Europe, the EN 1492 webbing sling standard governs the design, testing, and marking of flat woven webbing slings (EN 1492-1) and round slings (EN 1492-2). These standards are harmonized under the EU Machinery Directive and are essential for CE marking of lifting accessories sold within the European Economic Area.

EN 1492-1 specifies minimum breaking force test requirements, elongation limits, stitching requirements for eye construction, and the color-coding system for capacity identification. It also defines testing conditions and temperature limits for each fiber type. Any polyester lifting sling sold in Europe for professional use must meet or exceed these requirements and carry a CE mark along with a Declaration of Conformity from the manufacturer.

Web Sling and Tie Down Association Standards

The Web Sling and Tie Down Association (WSTDA) is an industry body that publishes recommended standards and training materials for webbing sling use in North America. Their WS-1 standard for synthetic web slings provides detailed guidance on capacity ratings, inspection criteria, and application recommendations. While WSTDA standards are not legally binding on their own, they are widely referenced as best practice guidance and are incorporated by reference in many safety management systems.

Webbing Sling Inspection: Procedures and Criteria

Regular and thorough webbing sling inspection is one of the most important activities in any lifting safety program. Slings are consumable items that degrade through use, and a damaged sling that remains in service is a direct risk to personnel and property. Understanding what to look for, how to look for it, and what action to take is a core competency for any rigger or safety professional.

Pre-Use Inspection (Before Each Lift)

Before every lifting operation, the sling should be visually inspected by the person performing the lift. This does not need to be a lengthy process, but it must be thorough. The inspection should cover:

The full length of both faces of the sling body, looking for cuts, tears, fraying, or holes
The eye or end fitting areas, which are high-stress zones and prone to damage
The stitching at each end, checking for broken, pulled, or missing stitches
Any signs of chemical contamination, including discoloration, brittleness, or unusual odor
Evidence of heat damage, such as glazed or melted fibers
The identification tag, which must be present, legible, and showing a valid WLL

Periodic Inspection by a Qualified Person

In addition to pre-use checks, slings must receive a formal periodic inspection conducted by a qualified person, defined under ASME B30.9 as someone with specific knowledge and experience in synthetic sling inspection. The frequency of this inspection depends on service conditions. Slings in heavy or severe use may require monthly or even weekly formal inspection, while lightly used slings may require quarterly or annual review.

A formal periodic inspection should include all of the pre-use checks listed above, plus a more detailed assessment of:

Elongation and creep: Check whether the sling has permanently stretched beyond its original length, which indicates overstress
Internal fiber damage: Flex the sling body and feel for areas that have lost flexibility or feel hard, which can indicate internal fiber breakage
Wear patterns: Consistent wear along the sling body edges may indicate regular contact with abrasive surfaces
Inspection records: Review the sling service history and compare it with the current condition

Common Failure Modes in Webbing Slings

Understanding how webbing slings fail helps inspectors recognize early warning signs before a failure occurs. The most common failure modes include:

Cutting failure: Sharp edges on a load or structural member cut through the webbing under load. This is one of the most sudden and dangerous failure modes. Edge protection sleeves or corner pads must be used whenever a sling contacts an edge radius of less than approximately 0.5 times the sling width
Abrasion wear: Repetitive sliding contact with rough surfaces gradually wears through the outer yarns, reducing the load-bearing cross-section. The first sign is usually surface fuzz or exposed inner yarns
UV degradation: Prolonged exposure to ultraviolet radiation breaks down the polymer chains in the webbing fibers, causing brittleness. Slings stored outdoors without protection are particularly vulnerable
Chemical attack: Exposure to acids, solvents, or other aggressive chemicals can rapidly degrade the fiber, sometimes without obvious external signs
Overloading: Applying a load beyond the WLL, especially combined with a poor sling angle, can cause sudden rupture or cause permanent fiber damage that weakens the sling for subsequent lifts
Heat damage: Synthetic fibers begin to lose strength well below their melting point. Polyester starts to soften around 170 degrees Celsius, but ASME B30.9 typically recommends limiting service to around 100 degrees Celsius for continuous use

When to Remove a Sling from Service

The decision to remove a sling from service should never be made reluctantly. The cost of a sling is trivial compared to the cost of an incident. Remove a sling immediately if any of the following are found:

Cuts, tears, or holes that penetrate the sling body
More than 10% of the stitching is broken or missing in any stitch row
The identification tag is missing or unreadable
Evidence of heat exposure, chemical contamination, or UV degradation
Hardness or stiffness in the sling body indicates internal fiber damage
Any doubt about the integrity of the sling that cannot be resolved by inspection

Removed slings must be destroyed or clearly marked out of service so they cannot be returned to use. Storing them with serviceable slings creates the risk of accidental reuse.

Proper Storage and Handling to Extend Sling Life

Good storage practices reduce the rate of deterioration and extend the working life of webbing slings. Slings should be stored in a clean, dry location away from direct sunlight. Hanging slings on pegs or racks is preferable to piling them on the floor where they may be stepped on, driven over, or contaminated by spilled fluids.

Keep slings away from chemicals, welding equipment, and heat sources. Slings that have been used in wet conditions should be dried before storage to prevent mildew or degradation. Do not use slings to carry or drag loads along the ground, and always protect the sling from sharp edges and abrasive surfaces during the lift using proper corner protection equipment.

Selecting the Right Webbing Sling for the Job

Choosing the correct sling involves more than finding one that has a WLL greater than the load weight. A proper sling selection process should work through the following sequence:

Determine the actual weight of the load. If not known, it must be calculated or estimated conservatively
Determine the sling configuration and rigging geometry, including the number of sling legs and the expected angles
Calculate the actual load per sling leg using the appropriate angle factor
Check the load surface and contact geometry to determine whether edge protection is needed
Consider the environment, including temperature, chemical exposure, and moisture
Select a sling rated at or above the calculated leg tension, with the appropriate material for the operating environment
Verify that the sling is in good condition and within its inspection period before use

So, the bottom line is…

A webbing sling looks simple, but there is considerable engineering behind its design, rating, and proper application. Understanding the structure of synthetic webbing slings, how working load limit is established and can be compromised, why sling angle is so critical to lifting sling safety, and what standards like ASME B30.9, OSHA 29 CFR 1910.184, and EN 1492-1 actually require, gives safety professionals and engineers the knowledge they need to manage lifting operations responsibly.

Regular webbing sling inspection is not a bureaucratic formality. It is a genuine barrier between a safe lift and a catastrophic one. Taking the time to understand failure modes, apply proper inspection criteria, and retire damaged slings without hesitation is what separates a rigorous lifting safety program from one that relies on luck.

For any organization managing lifting operations, investing in proper training, maintaining clear inspection records, and following recognized standards is the most reliable path to consistent safety performance.

References and Further Reading

ASME B30.9: Slings, American Society of Mechanical Engineers. Covers design, materials, testing, inspection, and use requirements for all sling types, including synthetic webbing slings in North American practice.
OSHA 29 CFR 1910.184: Slings, Occupational Safety and Health Administration. The U.S. federal regulation governing sling use in general industry workplaces includes identification, inspection frequency, and capacity requirements.
EN 1492-1: Textile Slings for General Purpose Lifting, Part 1 – Flat Woven Webbing Slings. European standard specifying design, construction, testing, and marking requirements for flat webbing slings sold within the European Economic Area.
Web Sling and Tie Down Association (WSTDA): WS-1 Recommended Standard Specification for Synthetic Web Slings. Industry best practice standard for North American markets, published by WSTDA. Available at www.wstda.com.

This guide is intended for educational purposes. Always consult the sling manufacturer’s documentation and applicable local regulations before performing lifting operations.
