Are you planning to use a webbing sling but need help determining which type and size to choose?

Don’t overlook this detail. Understanding the right type and size for your needs is crucial to maximizing the use of a webbing sling while ensuring safety.

In this article, we will guide you through various types and sizes of webbing slings.

Finally, we will provide practical examples of how webbing slings are used in real-life applications to help solidify your understanding.

So, make sure to read through the entire article!

What is a Webbing Sling?

A webbing sling is a synthetic sling primarily designed for lifting heavy loads.

Yes, even though it’s made of textile material, webbing slings offer impressive tensile strength.

With the proper selection of size, type, and configuration, a webbing sling can lift loads up to several tons.

This is why understanding various types and sizes of webbing slings is essential.

Functions of a Webbing Sling

The primary function of a webbing sling is to lift and hold loads.

However, it serves different purposes depending on the task, such as:

Lifting heavy items to transfer them from one location to another within the same area.
Securing cargo during transportation to prevent damage from shocks.
Reaching or retrieving items in hard-to-access areas.
Simultaneously lifting finished goods to increase efficiency and save time.
Placing containers or pallets precisely in the right spot.

Webbing Sling Sizes and Capacity

According to international sling safety standards, webbing slings are available in various sizes and capacities.

Sebatek, a certified CE distributor in the European Union, offers various types and sizes of webbing slings.

Here’s a breakdown of Sebatek’s webbing sling widths and their corresponding lifting capacities:

30 mm: 1 ton
60 mm: 2 tons
90 mm: 3 tons
120 mm: 4 tons
150 mm: 5 tons
180 mm: 6 tons
210 mm: 7 tons
240 mm: 8 tons
270 mm: 9 tons
300 mm: 10 tons

Each size is color-coded according to safety standards for easy identification.

Besides understanding the basic sizes and capacities, it’s also important to be aware that webbing slings have different load limits depending on how they’re used in specific configurations.

This limit is known as the Working Load Limit (WLL).

For more details on calculating it, you can check this guide: How to Calculate Webbing Sling Strength.

Or take a look at the table below for a visual representation of capacity details.

Real-Life Usage of Webbing Slings in Various Industries

Various types and sizes of webbing slings are commonly used across many industries and are tailored to specific needs and operational conditions.

Below are some real-life examples:

Construction Industry

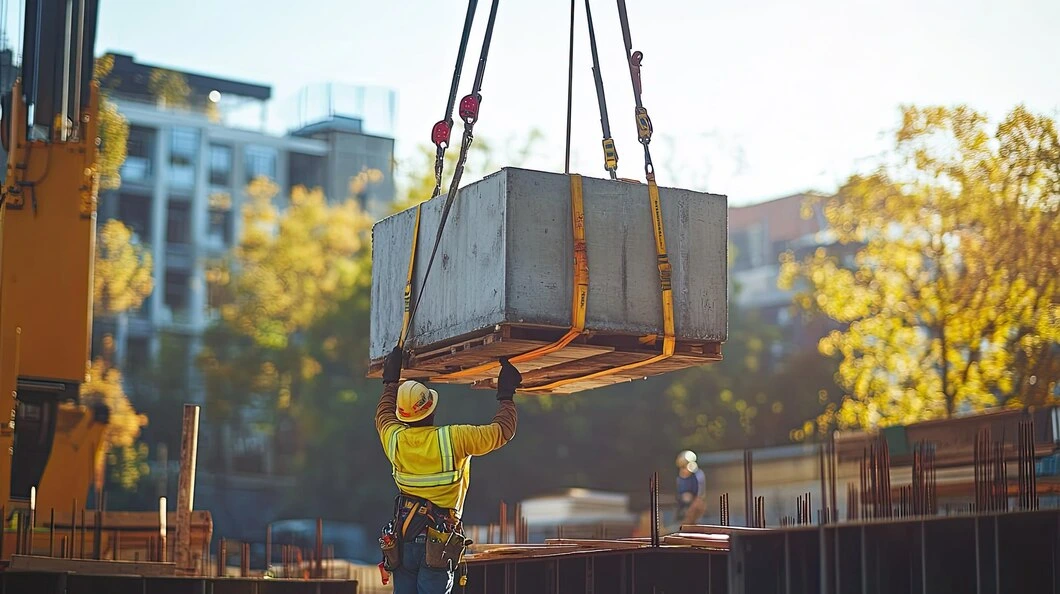

Lifting Concrete Beams: Webbing slings are used to lift and move heavy concrete beams during the construction of high-rise buildings.
Steel Structure Installation: They are also used to lift and position large steel structures while constructing bridges or skyscrapers.

Mining Industry

Heavy Equipment Lifting: Webbing slings are used to lift large mining equipment to work sites, such as drills or excavators.
Mineral Transportation: They ensure the safe transport of extracted minerals to avoid damage or loss.

Shipping and Logistics

Cargo Securing: Webbing slings help secure cargo inside containers during sea or air transport to prevent shifting and damage.
Container Lifting: They lift and transfer containers from ships to trucks and vice versa.

Manufacturing Industry

Machinery Relocation: Various types and sizes of Webbing slings are used to lift and relocate heavy machinery within factories during installation or maintenance.
Raw Material Lifting: They are used to lift large raw materials, like steel coils or timber, to storage or processing machines.

Types of Webbing Slings

Webbing slings are available in various types, each with unique advantages and specific uses.

Here are some commonly used types:

1. Triangle-Choker

This type has two triangular ends, one larger than the other.

The larger triangle is used to position the load, while the smaller triangle secures the sling.

It’s ideal for applications where the load needs to be stabilized, such as lifting pipes or cylindrical items.

2. Triangle-Triangle

With two triangles of the same size, both ends are used to attach the load to lifting equipment, ensuring balanced weight distribution.

This type is typically used for lifting irregularly shaped or heavy equipment.

3. Eye and Eye

This type features two looped ends (eyes) used to secure the load and lifting equipment.

It’s versatile and can be used in various lifting configurations, making it ideal for general lifting tasks in logistics and construction.

4. Eye & Eye Flat

Similar to the Eye and Eye, but designed with a flatter structure, this type reduces the risk of slipping and is suitable for lifting flat or wide loads, such as metal sheets or large panels.

5. Endless Sling

An endless loop design allows it to be used in various configurations, including choke, basket, or straight lifts.

The flexibility makes it a go-to choice for many industries, including construction and manufacturing.

6. Eye & Eye Twist

This type features twisted ends, providing extra stability for securing loads tightly.

Eye & Eye Twist is one of various types of Webbing Sling that is often used when heavy equipment must be tightly secured, such as in maritime industries.

7. Reverse Eye

With reinforced looped ends, this type offers extra durability in high-wear areas.

This type is ideal for lifting sharp or heavy items like concrete blocks or steel beams.

Advantages and Disadvantages of Webbing Slings

Advantages

Versatile and suitable for various configurations and loads.
They are lighter than chain or wire rope slings, making them easier to handle and position.
Soft textile material prevents damage or scratches to the load.
It is generally more affordable than sling types like chains or wire ropes.

Disadvantages

More prone to damage from abrasion and chemicals compared to metal slings.
It has a shorter lifespan if frequently used in harsh environments.
Requires regular inspection and maintenance to ensure there are no damages that could compromise safety.

Safety Considerations

To ensure safe usage of various types and sizes of webbing slings, specific safety measures should be observed:

Storage: Store webbing slings in a dry place away from chemicals or heat to prevent damage.
Regular Inspections: Conduct routine inspections to check for tears, wear, or discoloration that may indicate weakness.
Proper Use: Use webbing slings according to their rated capacity and recommended configuration to avoid overloading or improper usage.
Avoid Wet Conditions: Do not use webbing slings in wet conditions, which can weaken their load-bearing capacity.

Sebatek: Your Trusted Lifting Solutions

Understanding the various types and sizes of webbing slings is critical to ensure safe and optimal use.

Webbing slings come in different types and capacities and are adaptable to specific industry needs.

Sebatek offers a wide range of webbing slings to meet your lifting needs.

Still unsure which type and size are best for your application? Get expert recommendations from our team.
